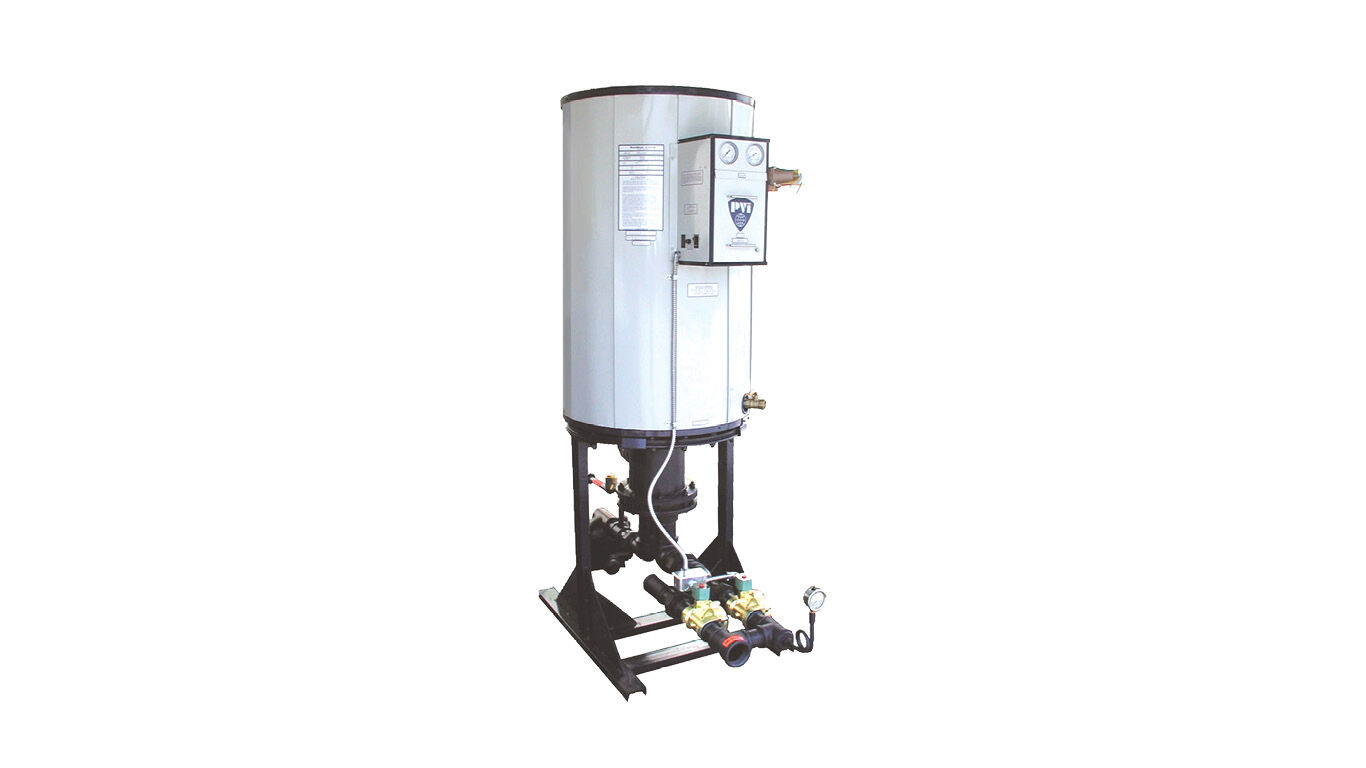

QuickDraw Semi-Instantaneous
×
![]()
- Steam water heater
- Eight standard sizes from 8 - 110 GPM
- 50 - 100 gallon tanks
QuickDraw® Semi-Instantaneous steam water heaters combine a relatively large single or double-wall copper u-tube bundle with a small vertical tank to provide moderate to large amounts of domestic water while occupying less floor space. Electronic operating control with Modbus capability.
Features and Benefits
- Standard steam control is a self-contained, pilot driven steam valve with solenoid actuator
- Optional controls include two-position steam valves with electric or pneumatic pilots and modulating valves with pneumatic pilots
- Heat exchanger is copper with cupro-nickel option
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 25-year AquaPLEX tank warranty (15 years full, 10 years prorated)
- One-year parts warranty
- Three-year scale failure warranty
- First-year service policy (freight and labor coverage)
- Long-life service policy (optional)
Certifications
- ASME, section IV, part HLW stamped and National Board Registered
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific QuickDraw Semi-Instantaneous
