Cobrex Instantaneous
×
![]()
- Steam water heater
- Up to 6000 MBH
- 20-120 GPM

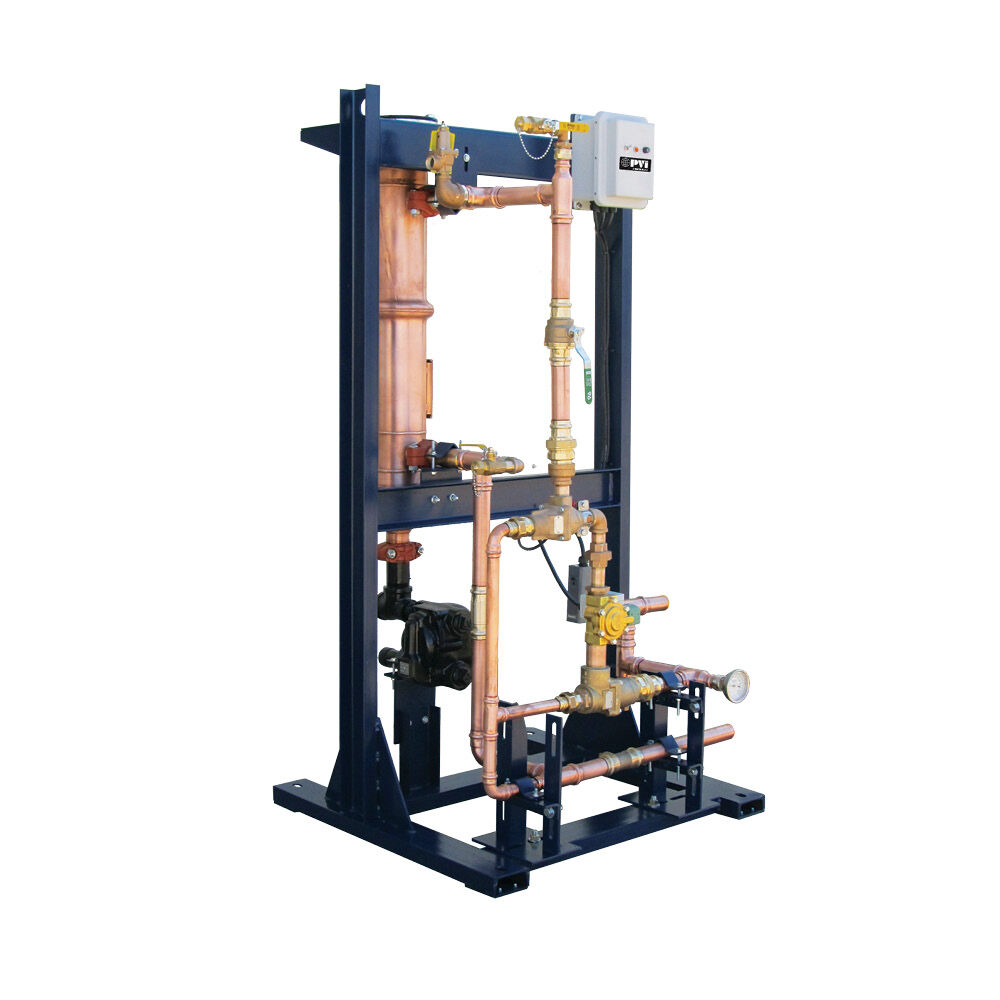

Cobrex® Instantaneous is a factory packaged, skid-mounted steam-fired water heater designed for buildings with hot water re-circulation. The heat exchanger is a double-wall, copper-tube, counter-flow design. Highly accurate temperature control is provided on the domestic water side through dual thermostatic mixing valves, which modulate infinitely in response to hot water demand. No steam control valve is required when inlet steam pressure is 15 psi or less.
Features and Benefits
- No steam control valve required at ≤15 psi steam
- Precise accurate temperature control +/- 4°F
- Small footprint
- Fully packaged, factory piped and skid mounted
- Easy, clean-in-place maintenance
- Solenoid valve over-temperature protection
- Single-pass, counterflow design
- Heat exchanger contains less than 2 gallons of water
- Electronic communication with BAS optional
Corrosion Protection
- Heat exchanger is all copper and bronze construction on the boiler water and domestic water sides
- Piping and fittings are either brass, bronze or copper
Warranty
- Three-year heat exchanger warranty
- One-year parts warranty
- First-year service policy (freight and labor coverage)
Certifications
- ASME section VIII and National Board Registered
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Cobrex Instantaneous
