EZ Plate Instantaneous
×
![]()
- Boiler water heater
- Up to 6,000 MBH
- 10 - 120 GPM

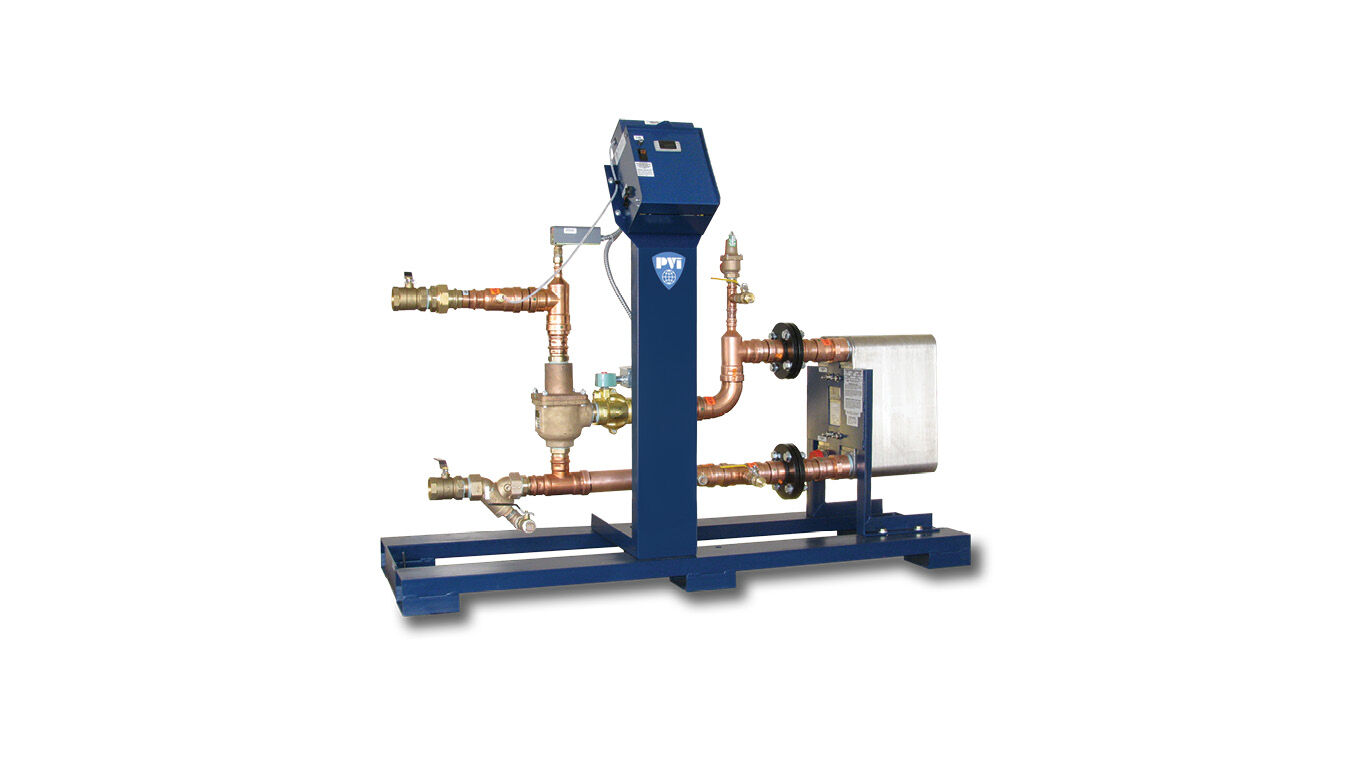

EZ Plate® Instantaneous is a factory piped, skid-mounted water heater that uses high or low temperature boiler water as the energy source. The heat exchanger is double-wall, brazed plate. Temperature control is provided entirely on the domestic water side through a thermostatic mixing valve. This valve modulates infinitely in response to hot water demand. EZ Plate can work with all types of boilers, but especially suited for condensing boilers where low return temperatures are beneficial to the operating efficiency of the system.
Features and Benefits
- Compact footprint <12 ft2 of floor space
- Designed to operate with lower boiler water supply and return temperatures to optimize condensing boiler operation
- Brazed plate heat exchangers
- Skid-mounted with factory pre-assembled piping
- Electronic communication with BAS protocol
Corrosion Protection
- Heat exchanger is all stainless steel construction on the boiler water and domestic water sides
- Piping and fittings are either brass, bronze or copper
Warranty
- 18-month heat exchanger warranty
- First-year service policy (freight and labor coverage)
Certifications
- ASME section VIII
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific EZ Plate Instantaneous
