EZ Plate Semi-Instantaneous and Storage
- Boiler water heater
- Up to 6000 MBH
- 150 - 900 gallon tanks

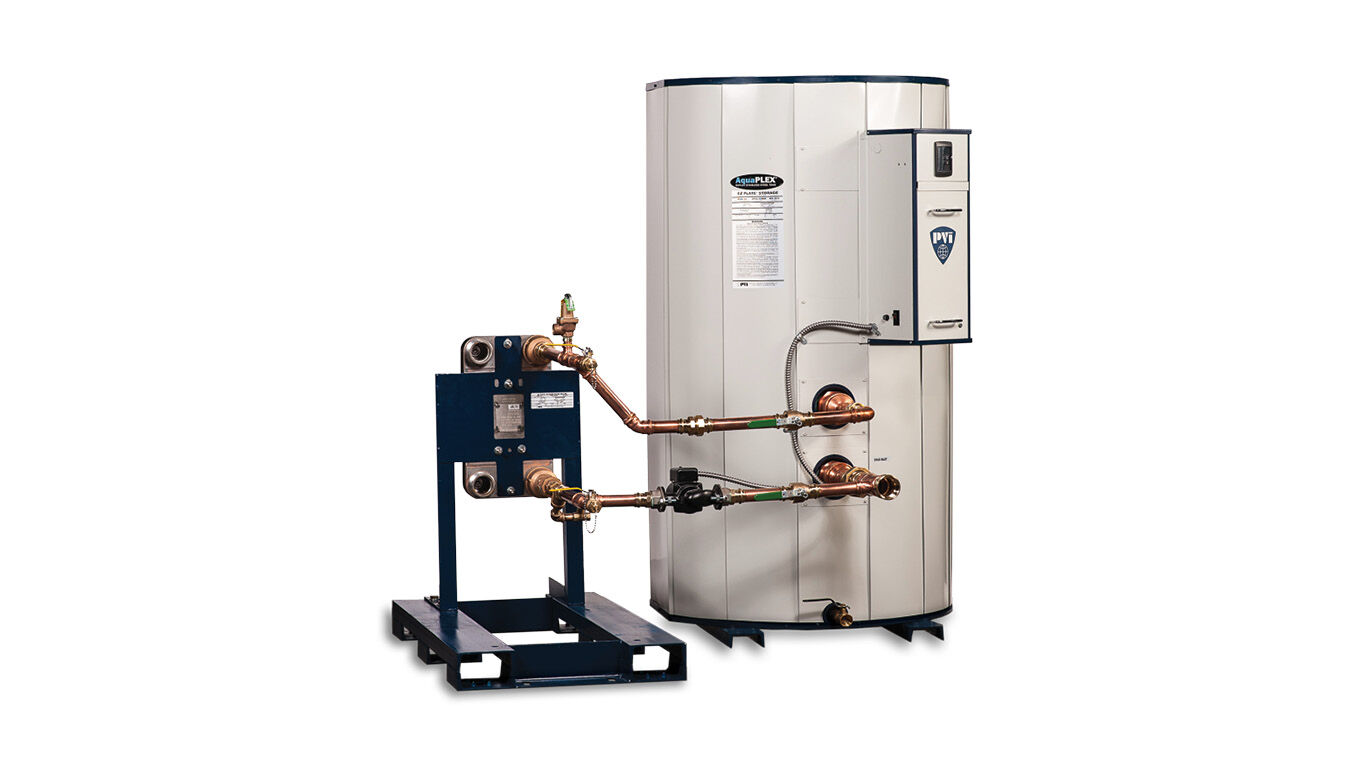

EZ Plate® water heaters utilize a double-wall, brazed plate, heat exchanger to provide domestic hot water from boiler water. Plate heat exchangers are ideal for use with condensing boiler water systems because they allow the production of hot domestic water from lower temperature boiler water. Boiler water needs to only be 10˚F hotter than the desired domestic water temperature. The heat exchanger is external to the tank providing a smaller footprint than traditional u-tube storage water heaters. EZ Plate storage also offers dual heat exchanger models stacked to maintain a small footprint. These models can provide double the capacity or be run independent of each other, providing 100% redundancy.
Features and Benefits
- Domestic water temperature to 180°F
- 100% redundant (dual) heat exchanger designs available
- Skid-mounted with factory pre-assembled piping
- No boiler water control valve is required with boiler water temperatures up to 180˚F
- Electronic operating control is Modbus connectable to a building automation system
- Recoveries will vary with differing boiler water temperature and domestic water temperature rise
- Temperature control is maintained by an electronic operator on the storage tank controlling a circulator between the exchanger and the tank
- Optional 2-way boiler water control valve is available for boiler loops utilizing VFD on the main building circulator
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 25-year AquaPLEX tank warranty (15 years full, 10 years prorated)
- 18-month heat exchanger warranty
- One-year parts warranty
- First-year service policy (freight and labor coverage)
- Long-life service policy (optional)
Certifications
- Tank is ASME, section IV, part HLW stamped and National Board Registered
- Heat exchanger is ASME, Section VIII, part 1 stamped and National Board Registered
- Control panel is UL panel shop labeled
