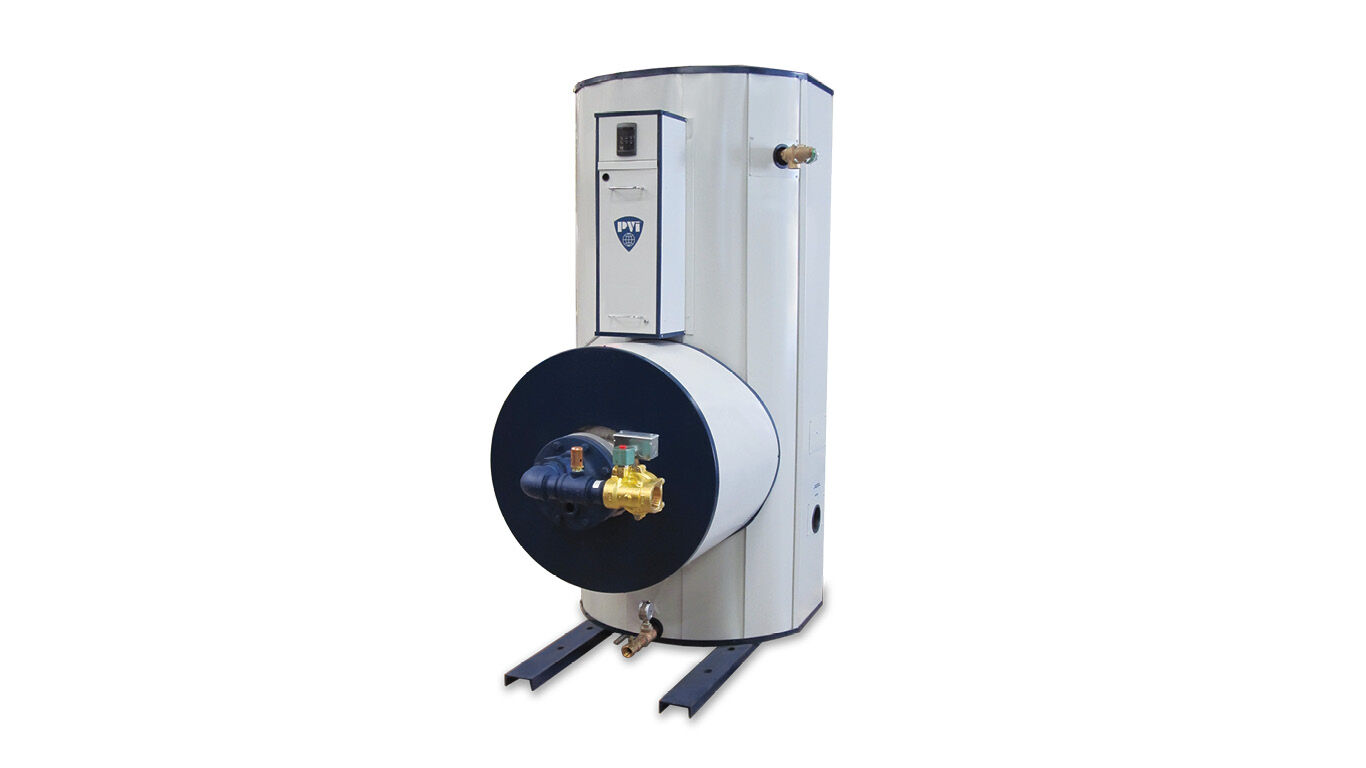

QuickDraw Steam Storage
×
![]()
- Steam water heater
- Seven standard sizes from 200 - 3200 GPH
- 150 - 900 gallon tanks
QuickDraw® Storage steam water heaters utilize a single or double-wall copper u-tube bundle to provide moderate to large amounts of domestic water from steam. Horizontal heat exchanger orientation allows easy removal for maintenance or repair. Tank corrosion protection avoids the use of anode rods, which is essential when a large non-ferrous heat exchanger is immersed in the storage tank. Now available with an electronic operating control that is Modbus connectable to a building automation system.
Features and Benefits
- Standard steam control is a self-contained, pilot driven steam valve with solenoid actuator
- Optional controls include two-position steam valves with electric or pneumatic pilots and modulating valves with pneumatic pilots
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 25-year AquaPLEX tank warranty (15 years full, 10 years prorated)
- One-year parts warranty
- First-year service policy (freight and labor coverage)
- Long-life service policy (optional)
Certifications
- ASME, section IV, part HLW stamped and National Board Registered
